Ford Raptor Oil Capacity and Oil Type, Every Generation

Page checked and dated October 24, 2026. Capacities below are pulled from Ford's own published tech spec sheets, not from a dipstick guess or a forum thread. Always confirm oil type against the fill cap and your specific owner's manual before you buy a drop.

Short answer: a Gen 1 Raptor's 6.2L V8 (2010-2014) holds 7 quarts with a filter change. The Gen 2 and Gen 3 Hi-Output 3.5L EcoBoost (2017-present) both hold 6 quarts. The Raptor R's supercharged 5.2L V8 holds 11.5 quarts. Viscosity grade varies by model year and is printed on the oil filler cap, so treat any number below as a starting point, not gospel.

Oil capacity by generation and engine

The 7-quart figure for the 6.2L comes from Ford's own 2014 F-150 tech specs. The Gen 2 and Gen 3 EcoBoost figures come from Ford's 2020 and 2021/2023/2024 Raptor spec sheets respectively, and they have not changed across that run of model years because the Hi-Output 3.5L has stayed the same basic architecture since 2017. The 11.5-quart Raptor R figure is from Ford's 2024 F-150 Raptor/Raptor R tech spec sheet. If you have seen 8.5 quarts or 10 to 10.5 quarts floating around for the Raptor R, that is wrong, do not use it.

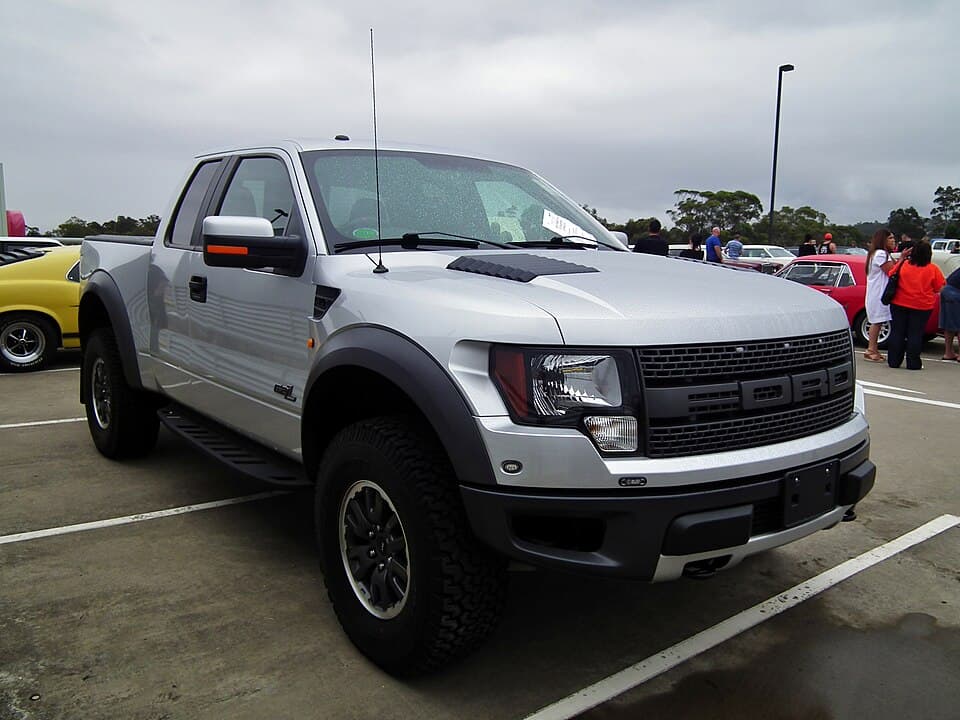

Gen 1 SVT Raptor (2010-2014): 6.2L and the early 5.4L

The number that matters for almost every Gen 1 on the road is 7 quarts with filter for the 6.2L V8, which was the engine in the vast majority of these trucks. This is the figure to use when you are planning an oil change or asking a shop to quote labor on your Gen 1 Raptor.

Ford also sold a small number of early-2010 Raptors with the 5.4L V8 before the 6.2L became the standard engine for the rest of the run. We do not have a Ford-confirmed capacity for that 5.4L application, and the number you will find quoted around the internet for other 5.4L-equipped F-150s does not necessarily carry over cleanly to the Raptor's oil pan and cooler setup. If you own one of these early 5.4L trucks, check the capacity printed in your actual owner's manual or on the oil fill cap rather than trusting a generic 5.4L number. These trucks are rare enough now that getting this wrong on a DIY change is not worth the risk of under or overfilling.

If you are shopping a Gen 1 right now rather than wrenching on one you own, the buying guide for a used Gen 1 Raptor and the 5.4L vs 6.2L breakdown are worth reading before you commit, since the two engines have very different reputations and parts availability at this point.

Gen 2 (2017-2020): 3.5L Hi-Output EcoBoost

Every Gen 2 Raptor, SuperCrew or SuperCab, takes 6 quarts of oil with a filter change. This is the Hi-Output version of the 3.5L EcoBoost V6, tuned differently than the 3.5L in a standard F-150, but sharing the same oil capacity across all four model years (2017, 2018, 2019, 2020).

The 6-quart figure is confirmed from Ford's 2020 F-150 Raptor tech spec sheet, and nothing about the engine's internals changed in a way that would move that number across the Gen 2 run. If a shop quotes you something noticeably different, like 5 quarts or 7 quarts, for a Gen 2, ask them to show you where they got that number before you let them fill it and send you down the road.

For more on what actually goes wrong with this engine over time, the 3.5 EcoBoost problems by year breakdown and the cam phaser rattle cost breakdown are both relevant reading if you are deciding whether a used Gen 2 Raptor is worth the asking price, which currently averages in the high $30,000s to mid $40,000s depending on model year according to the site's own used-market data.

Gen 3 (2021-present): 3.5L Hi-Output EcoBoost

The Gen 3's Hi-Output 3.5L EcoBoost holds the same 6 quarts with filter as the Gen 2 version. Ford's 2021, 2023, and 2024 Raptor tech spec sheets all list the identical figure, which makes sense given this is the same basic engine architecture carried forward with updates to the turbos, cooling, and electronics rather than a change to oil pan geometry.

This matters if you are comparing a Gen 2 and a Gen 3 side by side and trying to budget maintenance costs as part of a buying decision. Oil capacity is a wash between them. Where the two generations actually diverge is suspension (the Gen 3's available Live Valve shocks versus the Gen 2's Fox Live Valve setup), options packages, and price, which the Gen 2 vs Gen 3 buying comparison covers in more detail. If you already own a Gen 3 Raptor and want a sense of what the 37 Performance Package or other options actually add, that is a separate conversation from oil capacity, and the engines underneath are identical on this particular spec.

Raptor R: 5.2L supercharged V8

The Raptor R takes 11.5 quarts with a filter change, more than four quarts beyond what either EcoBoost Raptor needs, because it is a larger-displacement, supercharged V8 with its own cooling and lubrication demands. This number comes from Ford's 2024 F-150 Raptor/Raptor R tech spec sheet.

Be careful here specifically because this is the generation where bad numbers circulate most. Figures like 8.5 quarts or a 10 to 10.5 quart range have shown up in secondhand sources and they are wrong for this application. If a shop or a quick-lube chain tries to fill a Raptor R to one of those lower numbers, you will be running the engine short, and a supercharged V8 under boost is not the engine you want to find that out on. If you are pricing out ownership on a Raptor R, including routine service, the Raptor R cost of ownership piece goes into more of what this truck costs to keep running beyond just the oil change, and the Raptor R engine explainer covers why the 5.2L needs more oil and a different cooling strategy than the EcoBoost trucks.

What about the Ranger Raptor and Bronco Raptor?

Both of these use the 2.3L or 2.7L EcoBoost engines depending on market and application, and we do not have Ford-confirmed oil capacities for either one that we are willing to put a number on here. If you own a Ranger Raptor or Bronco Raptor, the capacity is printed on the oil filler cap and in your owner's manual, and that is the number to use. We would rather send you to the correct source than guess at a figure for a different platform and engine family than the F-150-based trucks covered above.

Why oil type is not a simple answer here

Ford's recommended oil grade (the viscosity, like a 5W-30 or 5W-40 designation) has changed across model years and engines, and we do not have a single Ford primary source confirming one grade across every generation covered in this piece. The right move is the oil filler cap on your specific engine, which has the viscosity stamped or printed on it, cross-checked against the owner's manual for your exact model year. Do not assume the Gen 2's spec carries to the Gen 3, or that the 6.2L's spec matches the Raptor R's supercharged 5.2L, even though both are V8s. Different oil pressure and temperature targets mean different recommended grades, and guessing here is how people end up with a check-engine light or, worse, premature wear nobody notices until the warranty has already run out.

The short version

• Gen 1 (2010-2014), 6.2L V8: 7 quarts with filter. Early 2010 5.4L trucks: check your owner's manual, capacity not confirmed here.
• Gen 2 (2017-2020) and Gen 3 (2021-present), 3.5L Hi-Output EcoBoost: 6 quarts with filter, identical across both generations.
• Raptor R (2023-present), 5.2L supercharged V8: 11.5 quarts with filter. Ignore any number below 11 quarts you see elsewhere.
• Oil viscosity grade is not confirmed here for any generation. Check the fill cap and your owner's manual before you buy oil, every time, for your specific model year.
