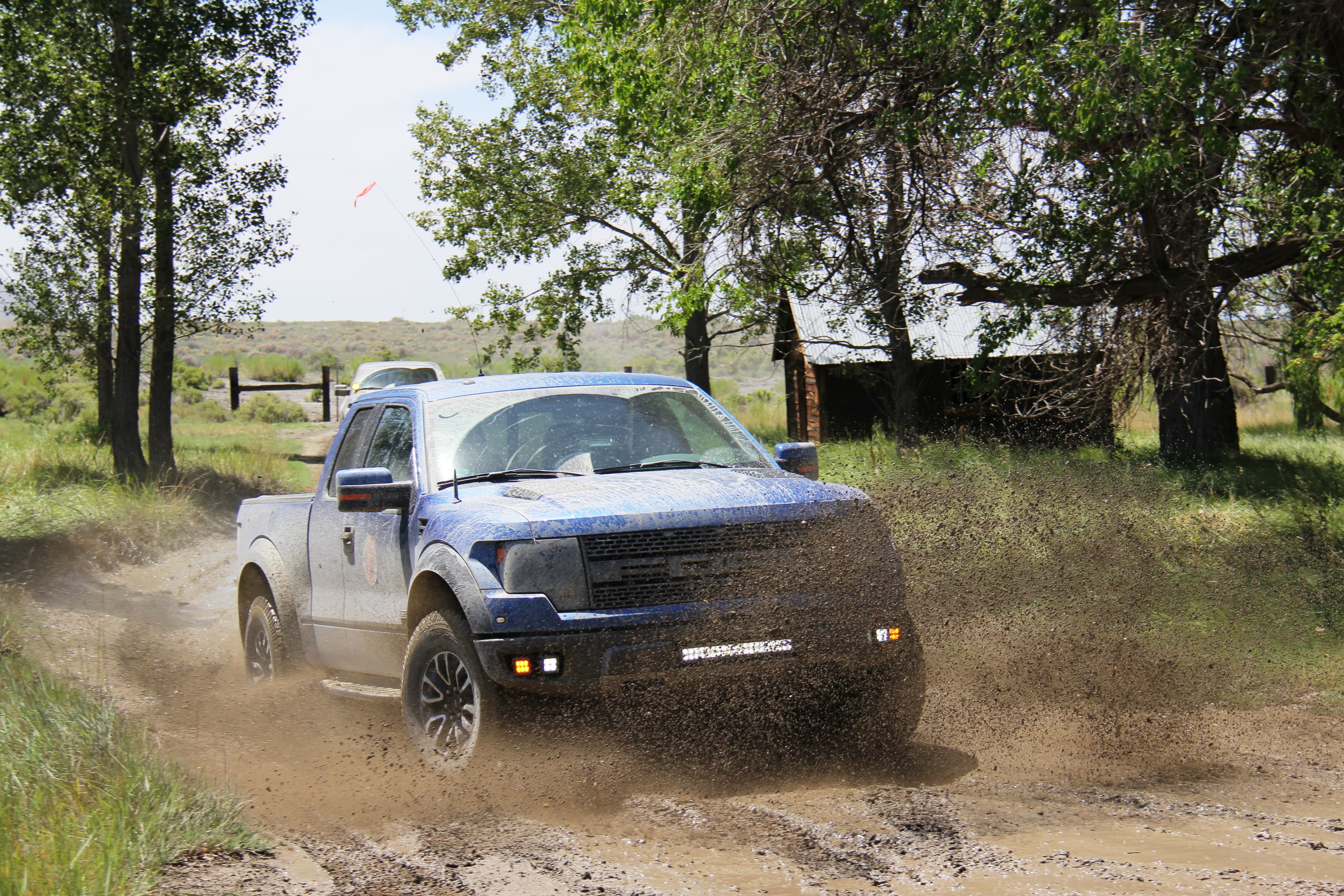

Gen 1
The one that started it
Photoseapong · CC BY-SA 4.0 · Wikimedia Commons
All 21 photosManufacturer figures unless noted. Used pricing is a 2026 clean-truck range and moves with the market.
| Engine | 6.2L Boss SOHC V8, naturally aspirated |
|---|---|
| Power | 411 hp @ 5,500 rpm |
| Torque | 434 lb-ft @ 4,500 rpm |
| Early engine | 5.4L 3-valve Triton V8, 310 hp / 365 lb-ft (2010 only) |
| Transmission | 6R80 six-speed automatic |
| Drivetrain | Part-time 4WD, 4.10 gears, electronic locking rear |
| Front differential | Torsen limited-slip (2012 and later) |
| Shocks | Fox Racing Shox 2.5 internal bypass, rear remote reservoir |
| Suspension travel | 11.2 in front / 12.1 in rear |
| Front track | +7.0 in over a standard F-150 |
| Tires | BFGoodrich All-Terrain T/A 315/70R17 (35 in) |
| Ground clearance | 9.8 in |
| Approach / breakover / departure | 30.2° / 22.6° / 23.1° |
| Curb weight | ~6,000 lb (SuperCrew) |
| Payload / towing | ~930 lb / 6,000 lb |
| Fuel tank | 26.0 gal |
| EPA | 11 city / 16 hwy |
| 0–60 mph | ~6.4 sec |
| Body styles | SuperCab (2010–14), SuperCrew (2011–14) |
| Clean used price, 2026 | $28,000 — $45,000 |
21 free-licensed photographs of the F-150 SVT Raptor. Open any image for the full caption, the photographer, the exact licence and a link to the original file.
Only the changes that move the buying decision. Trim shuffles and paint codes are not on this list.
The first Raptor shipped with the 310 hp 5.4L Triton, which was never enough truck for the suspension under it. The 6.2L arrived as a mid-year option. Do not pay 6.2 money for a 2010 without opening the hood.
The 5.4L is gone and the 411 hp 6.2 is the only engine. The SuperCrew arrives and immediately becomes the body most people want. This is the first year the truck is what everyone remembers it as.
The front Torsen unit is the meaningful one — it changes how the truck pulls itself out of soft sand and off-camber ruts. If you are cross-shopping years, this is the line worth crossing.
New dash, Sony audio and the first Special Edition package. The screen is also the year the electronics complaints start, so factor that in.
Last of the 6.2 trucks. Ford then skipped 2015 and 2016 entirely, which is why clean 2014s carry a premium over the identical 2013s.
Documented failures and complaints, with the symptom, the affected years, the fix that holds, and what it costs in 2026 money.
Run the list in order, in person, with the truck cold. Anything you skip here you pay for later.
Cam phaser rattle only shows in the first ten seconds. A seller who warms the truck up before you arrive is telling you something.
The 5.4 trucks are worth several thousand less and drive like it. The badge does not tell you; the intake manifold does.
IWE grind shows up immediately at low speed and full lock. It is a cheap fix if you catch it and an expensive one if you do not.
Uneven sag means tired leaves and probably a wrapped axle. Budget the Deaver pack into your offer.
Oil film means seals. Pitting on the shaft means the seals are going again in six months no matter what you pay for a rebuild.
Torn bushings and a weeping front diff are the tell that this truck was actually used, not garaged.
Salt-state trucks scale here first, and jumped trucks crack here. Both are deal-enders at the wrong price.
A 15-year-old truck with no service history is a project with a clean paint job. Price it that way.
These trucks got sent. A rippled bed floor means the truck landed hard, repeatedly.
Stages, not a shopping list. Each one assumes the stage before it is done, because doing them out of order is how people buy the same part twice.
A 15-year-old Raptor does not need parts, it needs maintenance. Every dollar here saves three later.
The leaf pack fixes the squat and the axle wrap in one move. Stay on 35s — the Gen 1 does not have the fenders or the gearing for 37s.
The Gen 1 rocker panel sits low and unprotected. This is the stage people skip and then pay a bodyshop for.
The factory headlights are 2010 halogen-era output. Once you are out past cell coverage, the winch stops being optional.
The 6.2 responds to a tune but it is naturally aspirated, so expect 20 to 30 hp, not 90. Suspension money buys more truck than engine money on this generation.
25 catalogued parts confirmed to fit this truck, and 2 registered Gen 1 builds running them.
Internal bypass zones let the shock ramp up progressively instead of relying on one valve stack, and it shows the moment a whoop section opens up at speed. Gen 1 and Gen 2 desert runners upgrade to these before touching anything else on the truck.
Fixes the squat and axle wrap that show up under trailer or payload once the factory leaf pack fatigues. Highest satisfaction-per-dollar mod in the rear suspension category, and Gen 3's coil-sprung 5-link does not need it at all.
Softens the transition into the factory bump stop so big hits do not translate straight into the frame rail. Cheap enough that most desert-focused builds add it in the same order as the shock upgrade.
Progressive-rate springs from a race fabricator that add lift and keep the nose from blowing through its travel when the hits get big. The cheapest meaningful change to how a Raptor lands, which is why race trucks run them before touching the shocks.
The default tire for a reason: predictable on pavement, tough sidewall, and every shop in the country stocks them. Sizing up from the factory 35 needs a speedometer recalibration, and the tread is not the strongest choice in mud or deep sand.
A hybrid tread that splits the difference between an all-terrain and a mud-terrain without the mud-terrain highway noise. Wears faster than the KO2 in exchange for more bite in loose dirt, and a size increase needs the speedometer recalibrated.
A true beadlock ring holds the tire on the bead at single-digit psi, which matters the moment air pressure drops for sand or rock. Heavier than a standard wheel, and the outer ring needs a periodic bolt torque check.
A forged-look cast wheel with enough backspacing flexibility to clear big brakes and still tuck under stock fenders. The most common wheel swap in the registry for anyone not running a beadlock.
A lighter, simpler alternative to the Stealth Fighter with the same winch-ready mount and D-ring shackle tabs. Loses a little approach angle in exchange for a noticeably lighter front end.
Quarter-inch aluminum from the front diff back to the transfer case, replacing the factory plastic that cracks on the first real rock strike. Not a mod anyone brags about, until the day it saves an oil pan.
Most owners do not think about rock sliders until the day a rocker panel finds a boulder at the wrong angle. The weld-on version from the same catalog is stronger, if there is a shop willing to do it properly instead of bolting it up in the driveway.
A dedicated 3/16-inch plate for the transfer case only, for owners who want protection without the labor of a full skid kit. Bolts to existing mounting points in under two hours with hand tools.
Baja Designs' flagship bar, and the one most cross-country desert racers actually run because the beam pattern does not wash out at highway speed. It needs a bumper or roof mount rated for the weight and the amp draw.
The pod size fits almost any bumper or A-pillar mount without cutting anything, and the sport-series LED is bright enough to matter. It is the entry point for most owners' first lighting upgrade.
Round pod format with more raw lumen output than the Squadron series, usually run as A-pillar or bumper-mounted spot lights. Expensive for a pair, but the throw distance is real, not a spec-sheet number.
Bluetooth-controlled RGB pods mounted under the rockers and frame rails, mostly for visibility while working under the truck at night. Not a performance mod, and nobody in the registry claims it is.
Needs a winch-capable bumper to mount to, so budget for that first if the factory bumper is still on the truck. Spooled with synthetic rope instead of steel cable, it saves real weight over the front axle.
A shackle mount that keeps a synthetic winch line from folding back on itself at a sharp hook angle, which is the actual failure point on most budget setups. Cheap enough that skipping it does not save any real money.
Airs 37s back up from trail pressure in a few minutes instead of the twenty a portable compressor takes. Needs an under-hood or in-bed mounting location and a clean 12-volt run straight to the battery.
Half the weight of the factory steel cable, and it does not store the same kind of energy if it fails under load. Pair with a proper thimble and soft shackle, not the steel hook that came on the truck.
More bolster and a harness bar pass-through than the factory seat offers, which matters the moment the truck starts landing anything. Requires the factory seat's power and heat wiring to be adapted or deleted entirely.
Digitally molded to the factory floor pan so mud and snowmelt stay off the carpet instead of pooling at the edges. Not exciting, but it is the single most common first purchase in the registry after the truck itself.
Bolts in behind the rear seat to anchor a proper 4 or 5-point harness, which the factory seatbelt geometry was never built for. Removing the rear seat is part of the install, so back-seat capacity goes with it.
Two weatherproof drawers rated to carry gear on top and inside, without a bed liner underneath cutting into usable height. Heavy on its own before anything gets loaded into it, so factor that into the payload math.
Carpet-backed liner that stops gear from sliding around and does not clang like a spray-in or drop-in plastic liner. Traps moisture if it does not get pulled and dried out after a genuinely wet trip.
