Ford Raptor Light Bars: Mounts, Wiring, and What's Actually Legal

Three mounting spots actually work on an F-150 Raptor: behind the upper grille slats (clean look, hidden by day), in the lower bumper opening next to or in place of the fog lights (easiest install, most visible bar), and on the roof or A-pillar (biggest bar you can run, worst wind noise, most likely to draw a trooper's attention). Baja Designs, Rigid Industries, KC HiLiTES and Diode Dynamics cover most of what owners actually buy. The legal reality does not change by brand: in most states a forward-facing light bar is off-road equipment, not street-legal lighting, so plan on a cover or a dash switch that keeps it dead on pavement, and check your own state before you wire anything.

Behind-the-grille mounts

This is where most owners land first, because it does not change how the truck looks parked in a driveway. A 20 to 30 inch combo bar, or a pod pair like the Baja Designs Squadron Sport pair, tucks behind the upper grille slats on a bracket using the factory grille mounting points, no cutting on a Gen 2 or Gen 3 truck. Measure the actual open span behind the slats before ordering, not the outer grille dimension, since the crash bar eats into that number fast. Gen 1 trucks (2010-2014) have a different, smaller grille cavity, so confirm fitment against your specific model year and do not trust a listing that just says "F-150 Raptor" with no year range.

Bumper-opening mounts

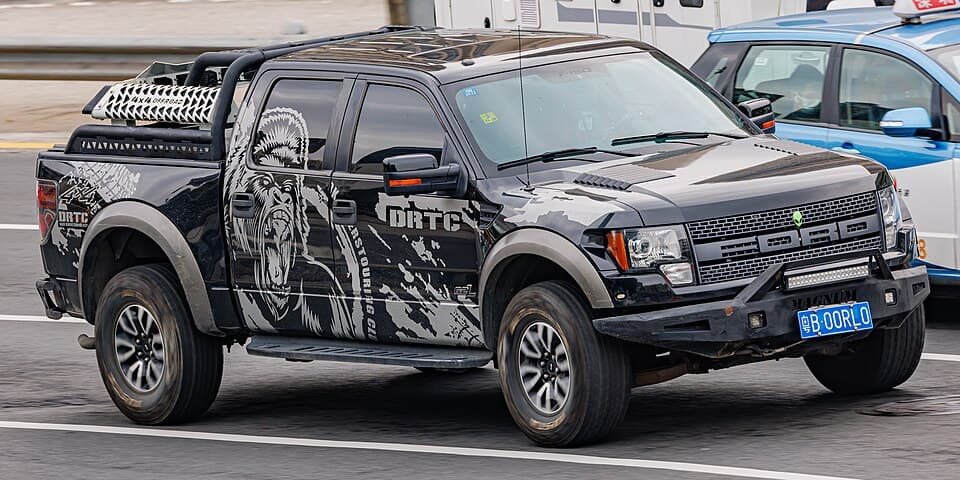

The lower bumper opening, where the factory fog lights sit on Gen 2 and Gen 3 trucks, is the fastest and cheapest path to real light output. A kit like the Rigid Industries D-SS Pro fog light kit drops straight into the factory fog housing with a plug-and-play harness, no drilling, stock look intact. Owners wanting more run small pods or a short bar in the same opening, on a bracket that clamps to the tow hook bolts or the lower valance. The tradeoff is exposure: a bar mounted low is the first thing to take a rock strike or a face full of mud, and it sits closer to road spray. Still the right call for a truck that daily-drives more than it wheels.

Roof and A-pillar mounts: the honest version

A roof-mounted 40 to 50 inch bar outputs more usable light than anything behind a grille, and it is the mount that matters for running a wash at night or chasing a truck through the desert. It also carries real costs nobody selling the bar mentions: wind noise goes up noticeably at highway speed, enough that some owners only run it off-pavement, and it is the most visible lighting mod on the truck, which matters for the legality question below. It needs a factory roof rack, drilled mounts, or A-pillar brackets actually rated for the load, not a universal clamp kit.

If a chase rack for recovery gear is already on the list, mount the bar to that rack instead of drilling separate holes. Rack selection and the wind-noise tradeoffs get the full treatment in our roof racks and chase racks guide. For a lot of builds, buying the rack first and the bar second is the smarter order.

Picking a brand that actually suits your build

Baja Designs makes the best optics here and prices accordingly. The S8 30-inch bar is what serious desert runners actually buy because the beam does not wash out at speed, and the LP9 pair throws real distance as an A-pillar or bumper spot light, not a spec-sheet number.

Rigid Industries sits a step below on price with beam quality that is still genuinely good, and its truck-specific mounting kits for the Raptor grille and fog locations save real labor over a universal bracket. KC HiLiTES is the legacy desert-racing name, competitive on output and durability at a mid-range price, though Baja Designs and Rigid have closed some of the gap that used to separate them. Diode Dynamics builds clean, well-documented ditch-light and pod-style products with better wiring diagrams and support than most of the segment, a strong pick for A-pillar or grille pods.

Budget bars off generic listings look like a bargain. More often the housing seals fail within a season, the lumen claim is inflated well past what a meter reads, and the harness is the first thing to melt under load. If the bar is going to see real desert miles, buy from a brand that publishes actual photometric data, not just a number on the box.

Wiring it correctly

Every bar above pod size should run its own relay, fed from the battery through an inline fuse sized to the draw, triggered by a low-current switch wire that only carries the signal, not the load. Do not splice into a factory circuit and expect it to behave. Some F-150 trims come with a factory upfitter switch bank; if yours has one, land the trigger there and skip a dash switch entirely. If not, a relay harness with its own switch is the standard path. Gen 2 and Gen 3 trucks also route more of the electrical system through the body control module, so pull power from a genuine always-hot or switched-ignition source, not a module-managed circuit, or risk a stray warning light unrelated to the new lights. Follow the manufacturer's own wiring diagram for gauge and fuse sizing over a forum shortcut.

Beam pattern, in one paragraph

Spot beams throw narrow and long, built for open desert at speed. Flood beams throw wide and short, better for slow technical trails or work-site visibility. Combo bars split the difference and are the right default for most owners. Amber lenses cut the glare that a white beam bounces straight back off dust and fog, worth running on at least one pair if you spend real time on dusty trails like the ones in can a stock Raptor run Moab.

Is any of this legal on the street?

This varies by state, enough that you need to check your own before wiring anything on permanently. The general pattern: auxiliary lighting beyond the factory setup is off-road equipment, legal to have installed but not legal to run lit on a public road, and some states specifically require a cover or a disabling switch for street use. The safe approach is a dash switch that defaults off, plus a physical cover on a roof or grille bar where the state code calls for one. A citation for an illegal bar is an easy cost to avoid; do not assume the seller's listing knows your state's law.

Skid plates: check this while you're under there

While you are under the truck running wire, look at what is actually protecting the front diff, oil pan, and transfer case. The factory skid setup on a Gen 2 or Gen 3 Raptor is decent but not full coverage, thin steel and plastic in spots a real rock strike cracks. A dedicated plate like the RCI Offroad transfer case skid covers the single most expensive component to replace for $280-420 installed, and a full setup like the SVC Offroad skid plate kit runs $1,000-1,450 installed. You need more than stock once you are regularly hitting rock ledges or exposed granite; on mild trails and graded roads, the factory plates hold up fine.

What to actually budget

A fog-location pod upgrade starts around $300-450 installed, the cheapest real upgrade here. A behind-the-grille bar with a proper relay harness lands most owners at $500-1,500. A full roof-mounted bar with a rack, wiring, and a dash switch is the most expensive path at $900-2,500, before the rack itself. Mod pricing across the rest of the truck lives in our mods database; a rack, a bumper, and a light bar are frequently bought as one project, worth pricing together.
